NORMAL TYPE OF BLOCKS / SKETCHES AND RENDERINGS

          Blocks pieces adapted to the normal type shape, similar to Lego® (basically circles inscribed in squares repeated in rectangular modules), but with a different fitting system for greater performance: with full fitting height, high fitting cohesion by half the height of the pieces upwards and half the height of the pieces downwards by circles or squares that do not achiev the limit for meeting faces at the tangent limit. These types of Block pieces are also Registered by Leonardo Jorge, and will be used in Projects as needed or as required for Licensing.

P4-1 and P4-2

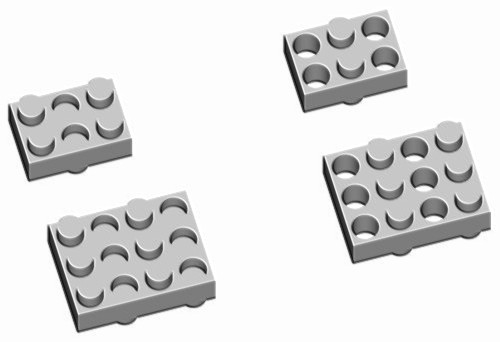

normal type pieces of Blocks / difference between P4-1 and P4-2

different number of pieces for normal type of Blocks /

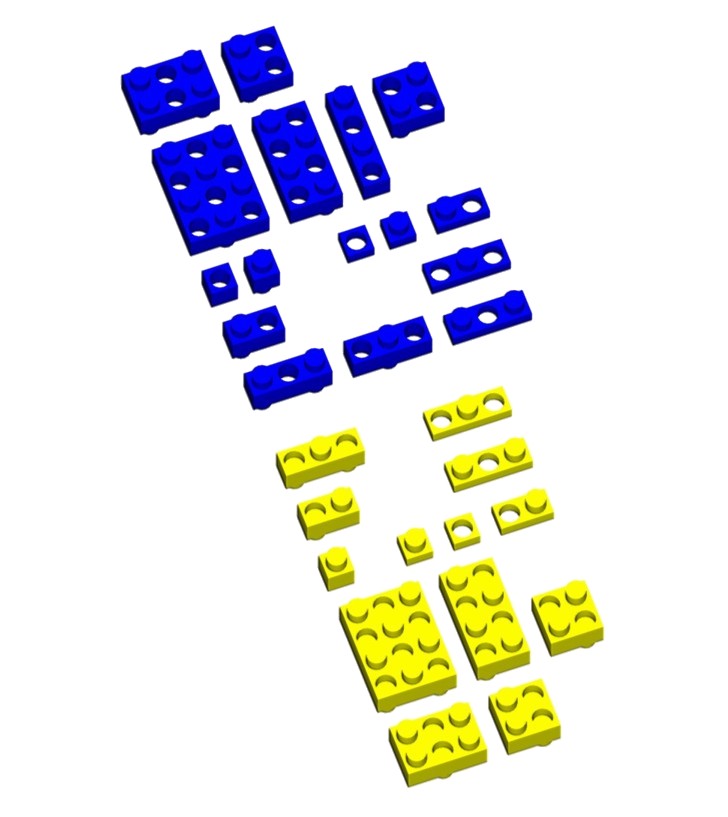

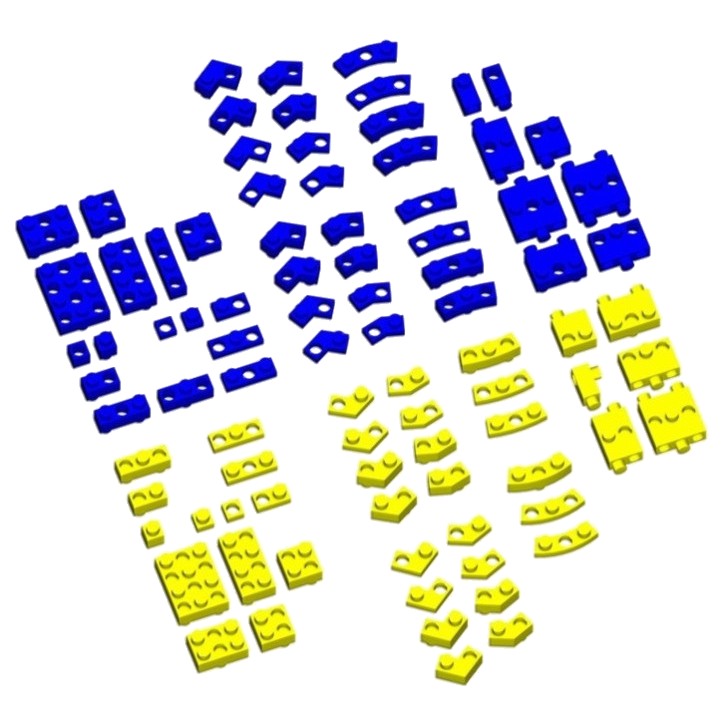

type P4-1 in blue and type P4-2 in yellow

          The Blocks with tangent limit and horizontal seam at 45° presented at the beginning of the website's home page are the shapes chosen to start the Project because they use fewer pieces compared to the normal type fitting system, offer greater beauty and better structural performance because the resistances are calculated for the extremes of symmetrical limit on faces with ideal balanced structuring, without generating moment efforts and without intermediate faces with critical corners for a plane, the faces of the parts are the structural limit for less raw material and greater resistance directly on the faces, the Blocks with tangent limit are the maximum of the Simple Structural Extreme on the faces for full fitting height with pieces literally one inside the other.

BLOCKS IN TANGENT LIMIT

height of the Block pieces at the tangent limit and with straight diagonal faces

TRANSITION BLOCKS AT TANGENT LIMIT
UP TO BLOCKS P4-2 AND P4-1

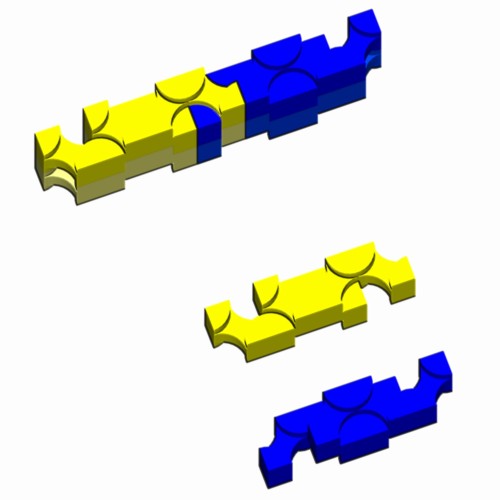

pieces of Blocks in tangent limit

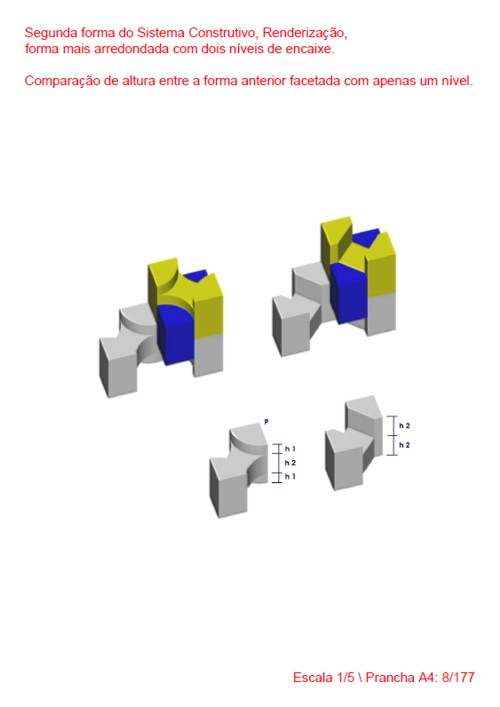

transition of limits of P4-2 and P4-1, different axis to form pieces above

transition of limits of P4-2 and P4-1

pieces of Blocks P4-2 and P4-1

VARIATIONS OF P4-2 AND P4-1

pieces of Blocks P4-1 for larger or smaller quantity of circles or squares

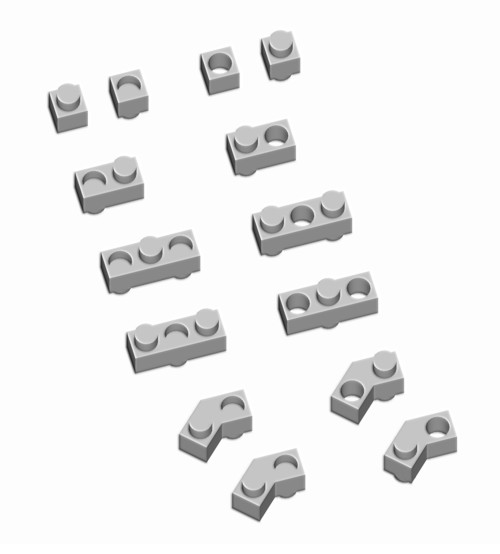

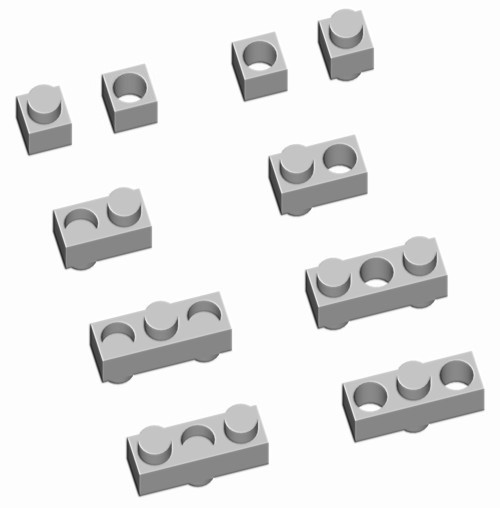

pieces of Blocks P4-2 and P4-1 for assembly filling

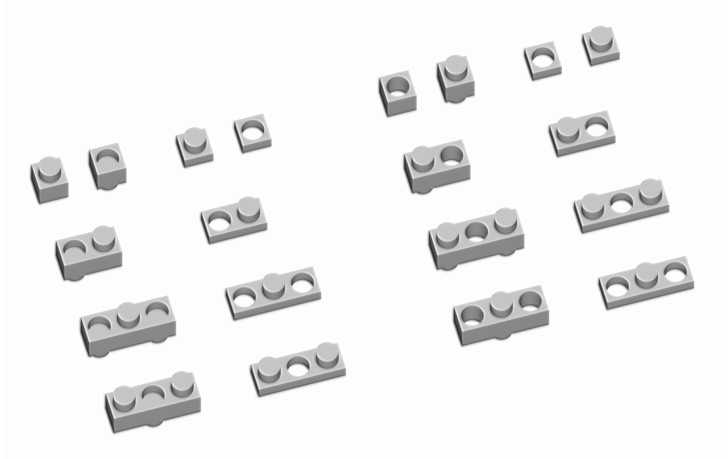

pieces Blocks P4-2 and P4-1 for finishing, half height (EQUAL PARTS)

pieces Blocks P4-2 and P4-1, pieces for assembly filling and finishing

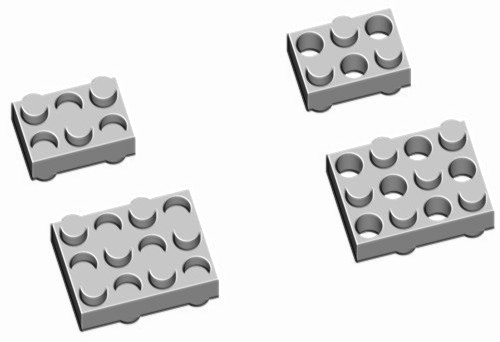

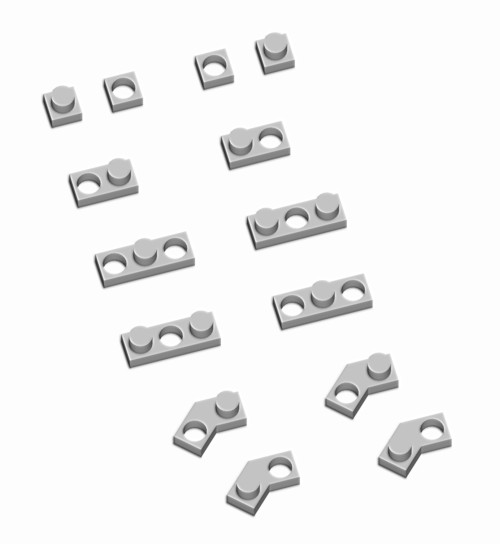

pieces of Blocks P4-2 and P4-1 as plates, orthogonal fitting lines

peças Blocos P4-2 e P4-1 como placas, linhas de encaixe diagonal

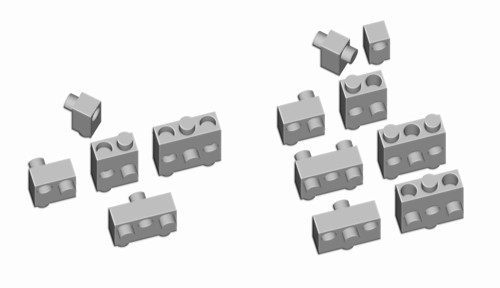

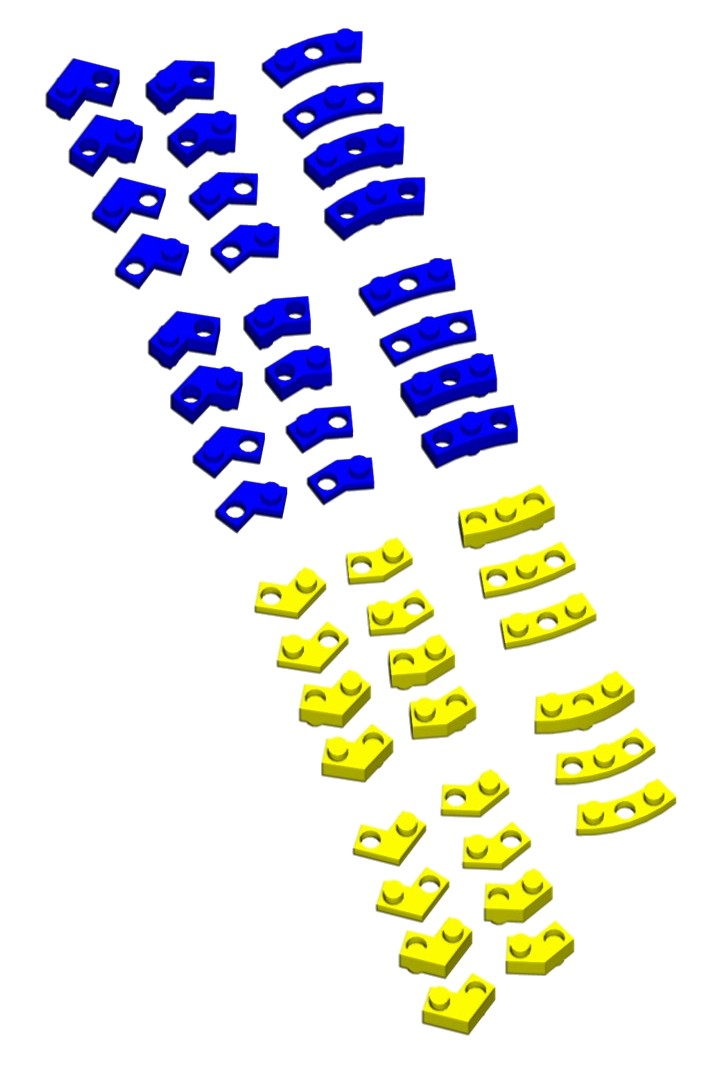

pieces Blocks P4-2 and P4-1 for crossing planes and raising levels

assembly of P4-1 Blocks pieces

sequence of Transformation of Blocks P4-2 and P4-1 into Blocks at the Tangent Limit

basic pieces P4-2 and P4-1

CURVED PIECES

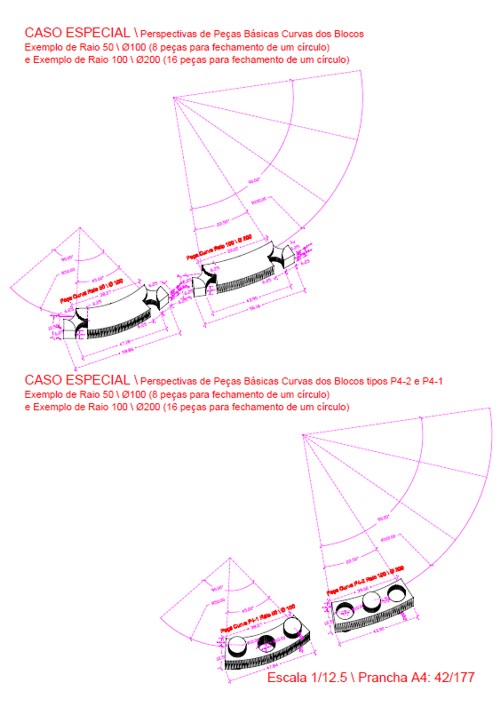

special case of curved pieces, Blocks at tangent limit, P4-1 and P4-2

P4-1 and P4-2

sketch of normal type pieces of Blocks / difference between P4-1 and P4-2

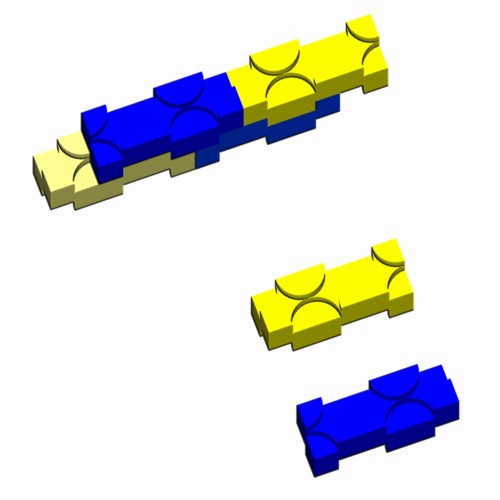

different quantity of pieces for normal type of Blocks / type P4-1 in blue and type P4-2 in yellow

GEOMETRIC DETAILS OF VARIATION
OF BLOCKS IN TANGENT LIMIT

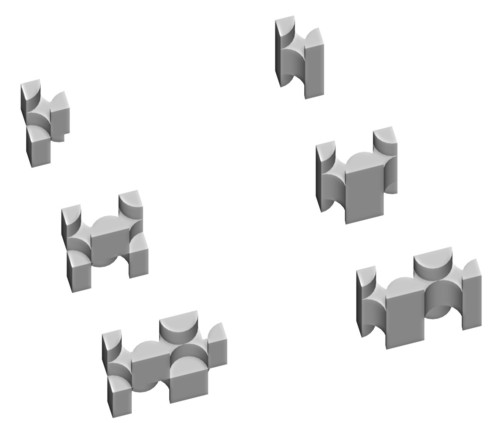

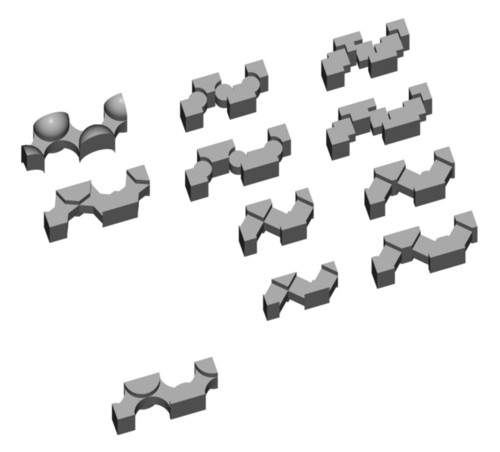

pieces of Blocks in tangent limit, some variants of geometries for fitting

pieces of Blocks added together, Special Case 1

pieces of Blocks added together, Special Case 2

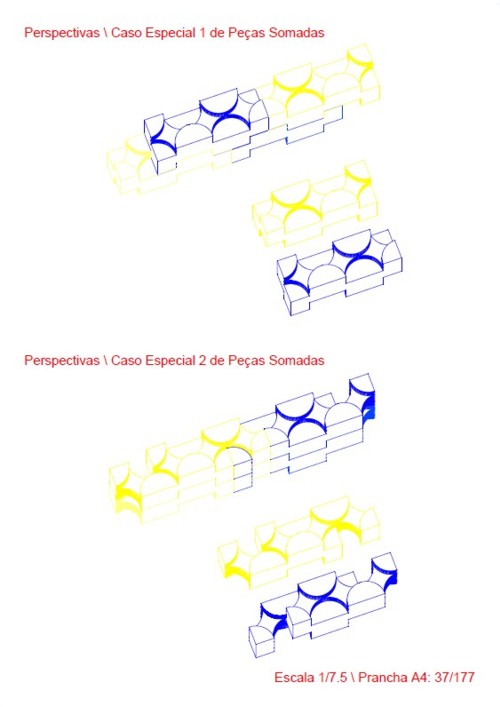

pieces of Blocks added together, Special Case 1 and Special Case 2
